曼胡默爾Europiclon空氣濾清器托架
此托架專門設計用于連接Europiclon®外殼的外表面，可使空氣濾清器無振動安裝。尺寸大于700的濾清器須用2個托架。
| 訂貨編號 |
適用于 Europiclon® |

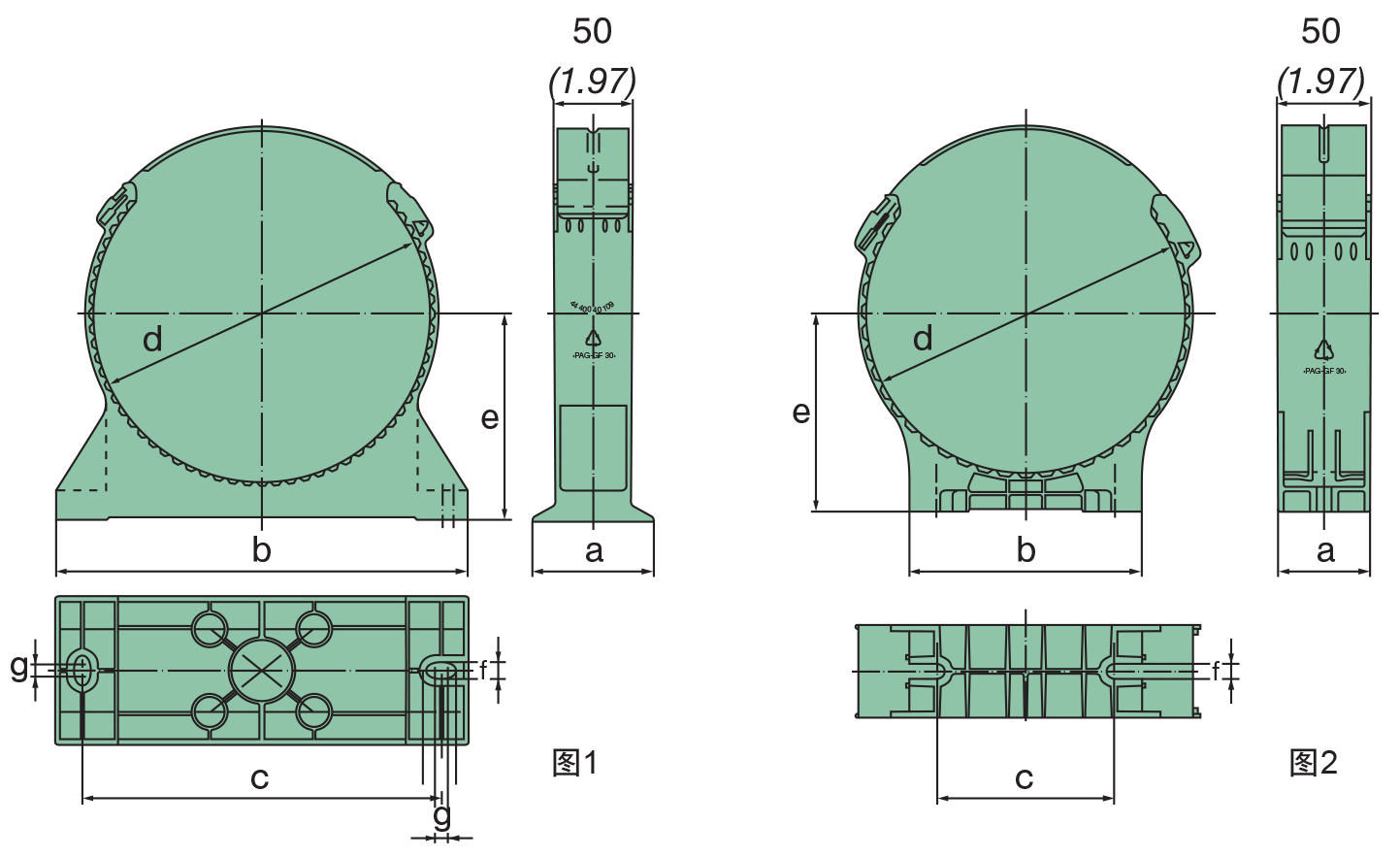

圖例 | 尺寸mm | ||||||
| a | b | c | d | e | f | g | |||
| 3905040959 | 4405.92... | 1 | 40 | 137 | 116 | 122 | 85.7 | 9 | - |
| 3910040999 | 4410092... | 1 | 60 | 205 | 175 | 156 | 105 | 8.5 | 15.5 |
| 3920040999 | 4520092... | 1 | 80 | 220 | 190 | 171 | 110 | 8.5 | 15.5 |
| 3930040999 | 4530092... | 1 | 80 | 250 | 220 | 201 | 125 | 8.5 | 15.5 |
| 3940040999 | 4540092... | 1 | 80 | 270 | 240 | 221 | 135 | 8.5 | 15.5 |
| 3950040999 | 4550092... | 1 | 80 | 310 | 280 | 262 | 155 | 8.5 | 15.5 |
| 3960040999 | 4560092... | 1 | 80 | 345 | 315 | 296 | 173 | 8.5 | 15.5 |
| 3970040999 | 4570092... | 1 | 80 | 385 | 355 | 326 | 206 | 8.5 | 7.0 |
| 3980040999 | 4580092... | 1 | 80 | 452 | 422 | 391 | 220 | 8.5 | 7.0 |
| 3910040989 | 4410092... | 2 | 50 | 110 | 80 | 156 | 100 | 8.5 | - |
| 3920040989 | 4520092... | 2 | 50 | 125 | 95 | 171 | 106 | 8.5 | - |
| 3930040989 | 4530092... | 2 | 50 | 140 | 110 | 201 | 121 | 8.5 | - |
| 3940040989 | 4540092... | 2 | 50 | 157 | 127 | 221 | 132 | 8.5 | - |
| 3950040989 | 4550092... | 2 | 50 | 182 | 152 | 262 | 153 | 8.5 | - |
| 3960040989 | 4560092... | 2 | 50 | 182 | 152 | 296 | 173 | 8.5 | - |
| 3970040989 | 4570092... | 2 | 50 | 233 | 203 | 326 | 206 | 8.5 | - |
| 3980040989 | 4580092... | 2 | 50 | 233 | 203 | 391 | 221 | 8.5 | - |
