曼胡默爾油氣分離器密封封件

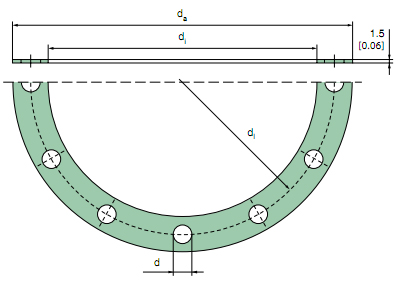

| 訂貨編號 |
油氣分離器直徑 [mm] |
da [mm] |
di [mm] |
dl [mm] |
d [mm]x孔數(shù) |
| 2307431212 | 73 | 111 | 73.5 | – | – |
| 2311331141 | 110 | 154 | 113 | – | – |
| 2311431991 | 110 | 165 | 113.5 | – | – |
| 2312831101 | 125 | 165 | 128 | – | – |
| 2313431101 | 135 | 155 | 135 | – | – |
| 2313831134 | 135 | 178 | 138 | – | – |
| 2313831981 | 135 | 165 | 138 | – | – |
| 2313831141 | 135 | 215 | 138 | – | – |
| 2313831971 | 135 | 215 | 138 | – | – |
| 2313831961 | 135 | 178 | 138 | – | – |
| 2313831171 | 135 | 190 | 138 | – | – |
| 2317231123 | 170 | 238 | 172 | – | – |
| 2317231124 | 170 | 195 | 172 | – | – |
| 2317231131 | 170 | 245 | 172 | 210 | 17 x 8 |
| 2317231141 | 170 | 192 | 172 | – | – |
| 2317231151 | 170 | 238 | 172 | 215 | 14 x 8 |
| 2317231951 | 170 | 200 | 172 | – | – |
| 2317231171 | 170 | 220 | 172 | – | – |
| 2317231941 | 170 | 245 | 172 | 210 | 13 x 8 |
| 2319031121 | 170 | 240 | 190 | 215 | 14 x 12 |
| 2320331101 | 200 | 240 | 203 | – | – |
| 2322331105 | 220 | 238 | 223 | – | – |
| 2322331106 | 220 | 290 | 223 | – | – |
| 2322331131 | 220 | 284 | 223 | – | – |
| 2322331107 | 220 | 274 | 223 | – | – |
| 2322331111 | 220 | 265 | 223 | – | – |
| 2322331121 | 220 | 250 | 223 | – | – |
| 2323031121 | 170/220 | 295 | 230 | 265 | 13 x 8 |
| 2323031131 | 220 | 300 | 230 | 272 | 14 x 12 |
| 2327831103 | 275 | 296 | 278 | – | – |
| 2327831104 | 275 | 328 | 278 | – | – |
| 2327831111 | 275 | 375 | 278 | – | – |
| 2327831991 | 275 | 296 | 278 | – | – |
| 2330031101 | 300 | 348 | 300 | – | – |
| 2330331112 | 300 | 355 | 303 | – | – |
| 2330331122 | 300 | 440 | 303 | – | – |
| 2330331131 | 300 | 343 | 303 | – | – |
| 2330331981 | 300 | 440 | 303 | – | – |
| 2330331151 | 300 | 400 | 303 | 350 | 26 x 12 |
| 2330331161 | 300 | 350 | 303 | – | – |
| 2330331171 | 300 | 390 | 303 | – | – |
| 2330331191 | 300 | 328 | 303 | – | – |
| 2332031131 | 300 | 360 | 320 | – | – |
| 2335331101 | 350 | 430 | 353 | – | – |
| 2335331981 | 350 | 430 | 353 | – | – |
| 2335331121 | 350 | 395 | 353 | – | – |
| 2340331101 | 400 | 434 | 403 | – | – |
| 2340331121 | 400 | 500 | 403 | 460 | 18 x 16 |
| 2340331131 | 400 | 440 | 403 | – | – |
| 2347931111 | 475 | 535 | 479 | – | – |
| 2347931121 | 475 | 635 | 479 | – | – |
| 2363031101 | 475 | 740 | 630 | 686 | 28 x 24 |
| 2360031102 | 595 | 700 | 600 | 660 | 23 x 24 |
